Escapamento RD: The Complete Guide to a Two-Stroke Legend

The Yamaha RD 350 hit 0 to 60 mph in about six seconds and weighed just 341 pounds. In 1973, that made it faster than almost anything else on two wheels at the same price. But the machine behind that magic was not just the engine. It was the escapamento RD, and in May 2026, riders around the world still talk about it like nothing else comes close.

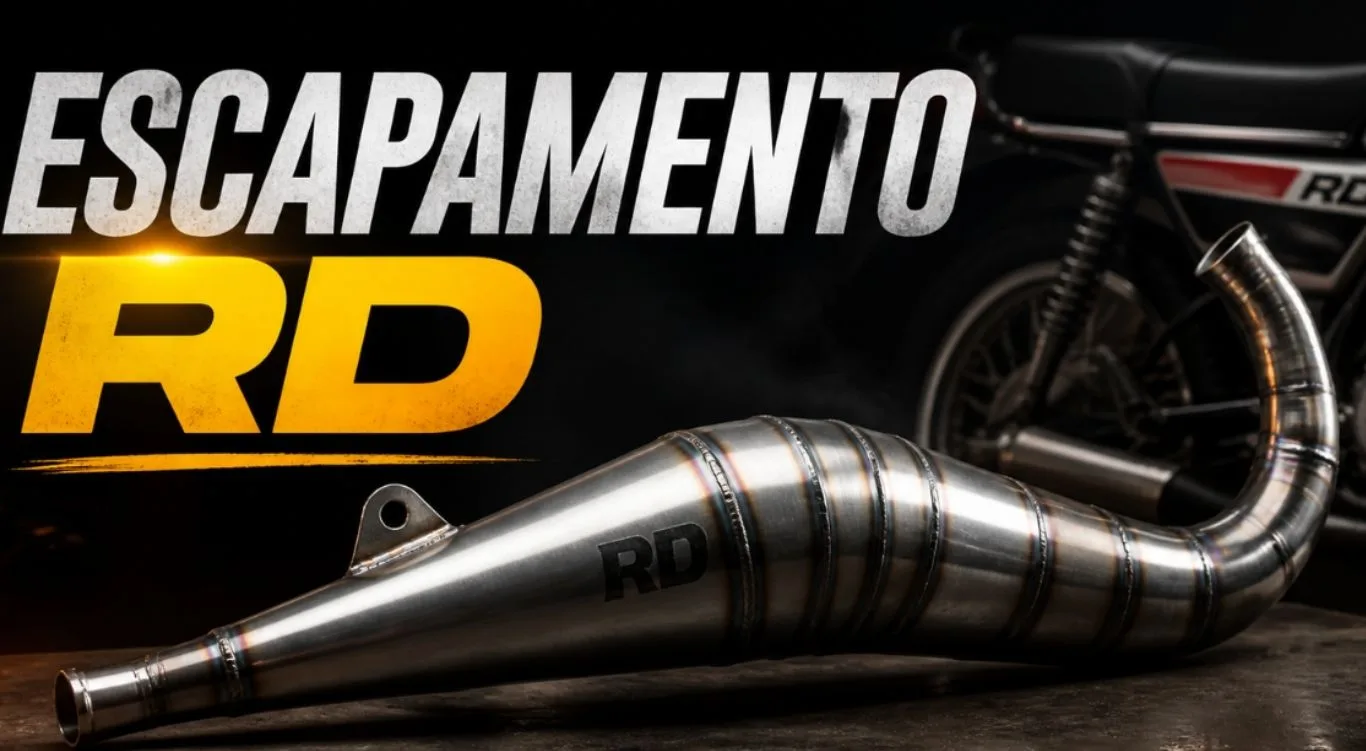

The escapamento RD is the exhaust system built for Yamaha’s legendary RD series motorcycles. It is not a passive pipe. It is an active performance tool that shapes how the engine breathes, how much power it makes, and the unmistakable sound it produces. Whether you are restoring a classic RD 135, building a track machine from an RD 350, or simply trying to understand what makes these bikes so special, this guide covers everything in plain language.

By the end of this article, you will know exactly how the escapamento RD works, which type suits your riding style, how to install and tune it correctly, and why it still matters deeply in 2026.

Table of Contents

What Is Escapamento RD?

The word “escapamento” is Portuguese for exhaust. “RD” stands for Race Developed, the name Yamaha gave its line of two-stroke performance motorcycles starting in the early 1970s. Together, the phrase describes the exhaust system specifically engineered for the Yamaha RD series, including the RD 125, RD 135, RD 250, RD 350, and RD 400.

But calling the escapamento RD just an exhaust misses the point. On a two-stroke engine, the exhaust is not a passive outlet. It is an active participant in combustion. The shape, length, and diameter of every section directly affect how much power the engine makes, where in the RPM range that power arrives, and how the bike sounds when it opens up.

This is why riders who understand their bikes talk about the escapamento RD with so much respect. Change the pipe, and you change the whole personality of the machine.

How the Escapamento RD Works: The Science Behind the Scream

To understand why the escapamento RD matters so much, you need to understand how a two-stroke engine works differently from a four-stroke.

The Two-Stroke Combustion Cycle

A four-stroke engine fires once every two revolutions of the crankshaft. A two-stroke fires every single revolution. This makes two-stroke engines lighter and simpler. It also makes them extremely sensitive to exhaust tuning.

Every time the piston descends, it pushes out burnt gases through the exhaust port. At the same time, fresh fuel and air are forced into the cylinder. The challenge is keeping that fresh charge inside the cylinder long enough to burn, while still clearing the old gases out completely.

This process is called scavenging. Get it right and the engine makes powerful, clean power. Get it wrong and unburned fuel escapes out the exhaust, power drops, and the engine runs hot.

The Expansion Chamber: The Heart of the Escapamento RD

The key feature of every escapamento RD is the expansion chamber. This is the bulging, oddly shaped middle section you see on RD exhausts. It looks unusual because it serves an unusual purpose.

How the Expansion Chamber Creates Power

When exhaust gases rush out of the cylinder, they travel into the wider expansion chamber and slow down. This creates a pressure wave that bounces back toward the cylinder.

Here is the clever part. If the geometry of the escapamento RD is tuned correctly, that reflected pressure wave arrives back at the exhaust port exactly when the piston is at the right point in its cycle. The wave acts like a door slamming shut, pushing any unburned fuel that tried to escape back into the cylinder just before the port closes.

The result is a higher effective compression ratio and more power without burning extra fuel. It is a physics trick built into the shape of the pipe itself.

Header Pipe, Stinger, and Silencer

A complete escapamento RD has four main sections:

Header pipe: Bolts directly to the engine cylinder. Its length and diameter set the timing of the exhaust pulse.
Expansion chamber: The “belly” of the system. Volume and cone angles determine the RPM range where peak power arrives.
Stinger: The narrow outlet pipe. Controls back pressure, which affects engine temperature and power at the top of the rev range.
Silencer or muffler: Tames sound for street use while preserving the core RD tone.

Every measurement in every section is calculated. A header that is one centimeter too long shifts the power band. A stinger that is too wide kills top-end performance. This is not a simple pipe. It is a tuned instrument.

Read more: FSI Blogs US: The Ultimate 2026 Guide for Financial Insights

Why the Escapamento RD Produces That Famous Sound

Ask any rider who grew up around these bikes and the sound is always the first thing they describe. The escapamento RD creates a sharp, high-pitched scream that builds with every gear change and hits its peak at full throttle. It is nothing like the deep rumble of a four-stroke. It is closer to the sound of a racing kart mixed with a chainsaw, and it is completely addictive.

That sound is not accidental. It is a direct result of pressure waves bouncing inside the expansion chamber at high speed. The frequency of those waves, combined with the sharp combustion pulses of a two-stroke engine, creates the unmistakable RD voice.

In Brazil, where the Yamaha RD 135 became one of the defining vehicles of street culture from the mid-1990s onward, the escapamento RD sound was immediately recognizable. WhatsApp groups dedicated specifically to buying and selling used expansion chambers still have hundreds of active members in 2026, trading pipes the way collectors trade rare records.

Types of Escapamento RD: Which One Is Right for You?

Not all escapamento RD systems are the same. The right choice depends entirely on how you use your bike and what you want from it.

OEM and Replica Exhausts

The stock exhaust that Yamaha shipped with the original RD models was carefully engineered to balance power, emissions compliance, and manageable noise. For collectors restoring a vintage RD to factory condition, finding an original exhaust or a high-quality replica is the right call.

Brands like Pro Tork, which has produced replacement systems for the RD 135 for decades, offer OEM-style pipes that replicate the original behavior: smooth, predictable power delivery and a sound level that works for daily riding.

Performance Aftermarket Exhausts

For riders who want more power and a sharper sound profile, aftermarket expansion chambers are the standard choice. These systems are designed to push the RD’s power band higher and harder.

Brands with strong reputations in the two-stroke community include:

Dore Escapamentos: Widely considered the gold standard for track-ready RD exhausts. Aggressive sound, significant top-end power gains.
Roncar: Popular in Brazil and Latin America. Strong balance between performance and street usability.
Jolly Moto and Giannelli: Italian brands with long histories in two-stroke tuning.
Sarachú and Dogster: Well-regarded among Brazilian and South American RD communities.

What Performance Numbers to Expect

Dyno-tested aftermarket escapamento RD systems consistently show horsepower improvements of 15 to 25 percent when combined with proper carburetor tuning, according to data compiled by Blooket.it.com based on rider testing in late 2025. A standard RD 350 making around 34 hp on a stock exhaust can realistically exceed 40 hp with the right pipe and jet setup.

Custom Handmade Exhausts

In Brazil especially, a strong tradition of hand-welded custom escapamentos developed alongside the RD’s rise to cultural icon status. Local fabricators built expansion chambers tuned specifically for drag racing, street performance, or a particular sound character.

Today, skilled builders still craft custom escapamento RD systems using simulation software to model gas flow before cutting metal. These are one-of-a-kind pieces and often the most expensive option. But for riders who want something truly personal, nothing else comes close.

The RD 135 vs. RD 350: Different Bikes, Different Exhaust Needs

Escapamento RD 135

The RD 135 uses smaller expansion chambers tuned for responsive acceleration at low to mid RPM. This suits city riding and the kind of quick throttle response that made the bike a street favorite across Brazil.

Yamaha introduced the RD 135 in Brazil in 1993, positioning it as an affordable performance machine for young riders. It quickly developed cult status, partly because a well-tuned escapamento RD 135 could out-accelerate far larger bikes off the line.

Escapamento RD 350

The RD 350 needs a larger, more aggressive exhaust to match its twin-cylinder engine. Expansion chambers for this model are designed for higher RPM thresholds and stronger top-end performance.

According to autoevolution.com, the RD 350 in its final Japanese form produced 63 hp at 9,000 rpm in a motorcycle weighing under 160 kg. The right escapamento RD pushes that package into genuinely fast territory. Yamaha continued producing the RD 350 in Brazil until 1995 under the RD 350R designation, giving the model a production run that lasted over two decades.

The Mistake 70% of RD Riders Make After Installing an Escapamento

This is the section most competitors skip entirely, and it costs riders real money and performance.

Installing an escapamento RD without retuning the carburetor is one of the most common and damaging mistakes in two-stroke motorcycle modification. It happens because riders assume a bolt-on exhaust is a pure upgrade with no side effects. That assumption is wrong.

Why Carburetor Tuning Is Not Optional

When you install a performance escapamento RD, exhaust gas flow changes significantly. The engine moves more air at higher RPM ranges. If the carburetor is not adjusted to match, the engine runs lean.

A lean condition means the fuel-air mixture has too much air and not enough fuel. On a two-stroke engine, this is serious. Two-stroke engines use oil mixed with fuel for internal lubrication. A lean mix means less lubrication at the worst possible moment: under hard acceleration.

Symptoms of a lean condition include:

Engine running hotter than normal
A high-pitched, strained note at full throttle instead of a clean scream
Power dropping off sharply before the rev limiter
White or very light gray deposits on the spark plug

The fix is straightforward: increase the main jet size in the carburetor to supply more fuel at higher RPM. Most experienced tuners also adjust the needle position in the carburetor slide. A quick check of spark plug color after a test ride confirms whether the tune is correct. A light tan color on the electrode means the mixture is right. White means too lean. Black means too rich.

Take the time to tune properly, and the escapamento RD delivers its full potential. Skip it, and you risk engine damage.

What Does an Escapamento RD Do for Performance?

An escapamento RD improves motorcycle performance in four measurable ways.

Horsepower and torque. A properly tuned expansion chamber can add 15 to 25 percent more horsepower. For an RD 350, that is a meaningful jump that changes how the bike feels in every gear.

Throttle response. When exhaust gases exit more efficiently, the engine can complete each combustion cycle faster. The result is a quicker response when you open the throttle.

Weight reduction. Aftermarket escapamento RD systems are typically lighter than stock. Some stainless steel and titanium systems reduce pipe weight by 20 to 30 percent compared to stock mild steel.

Sound. The expansion chamber amplifies and sharpens the natural two-stroke sound. For many riders, this is as important as the power gain. The sound is a direct signal of how the engine is performing.

How to Choose the Right Escapamento RD

Use this table to match your riding style to the right system type.

Riding Style	Best Exhaust Type	Key Benefit	Example Brands
Daily city commuting	OEM replica or street-legal aftermarket	Quiet, reliable, legal	Pro Tork, stock Yamaha
Weekend performance rides	Aftermarket expansion chamber	Better power band, sharper sound	Roncar, Sarachú
Track or drag racing	Custom or race-spec expansion chamber	Maximum top-end power	Dore, Dogster, custom fab
Classic restoration	OEM or period-correct replica	Authenticity and value	Pro Tork, original parts
Show bike	Custom finished stainless	Visual impact plus function	Local fabricators, JBRacing

Installing Your Escapamento RD: What to Do Before You Start

Installation is straightforward, but preparation matters. Here is what to do before fitting a new escapamento RD.

Verify the system fits your exact model and year, not just the general model family.
Check all mounting points on the frame for cracks or damage before fitting anything new.
Use new exhaust gaskets at the cylinder port. Old gaskets leak and kill low-end performance.
Fit the system cold, before the engine runs. Torque all fasteners to spec.
Start the engine and let it warm up fully before riding. Inspect for exhaust leaks at joints.
After the first ride, check the spark plug color and adjust jetting accordingly.
Re-torque mounting bolts after the first heat cycle.

Maintaining Your Escapamento RD: Keep It Performing for Years

Two-stroke engines burn oil with every combustion cycle. That oil leaves carbon deposits inside the expansion chamber over time. Carbon buildup narrows the internal volume of the pipe and disrupts the pressure waves the design relies on. Performance drops quietly, and riders often do not notice until it becomes significant.

Carbon Cleaning

Clean the inside of the expansion chamber every 5,000 to 7,000 km by using the heat-and-burn method: remove the pipe from the bike, plug both ends, and carefully heat the chamber with a torch to burn off carbon deposits. Do this outdoors. Chemical solvent soak is an alternative for riders who prefer not to use heat.

Rust Prevention

Mild steel pipes rust, especially in humid climates or if the bike sits for extended periods. Apply high-temperature paint to any bare metal sections. For long storage, coat the inside of the pipe with a light film of oil to protect surfaces.

Silencer Repacking

If your escapamento RD uses a repackable silencer, the fiberglass wool inside degrades over time. Replace it every 10,000 km. Old packing makes the exhaust sound raspy and thin instead of crisp and sharp. Fresh packing restores the correct tone and helps maintain correct back pressure.

The Escapamento RD and the Yamaha Power Valve System (YPVS)

One detail that separates later RD models from earlier ones is the Yamaha Power Valve System, or YPVS. Yamaha introduced YPVS in the RD 350 YPVS launched at the Cologne motorcycle show in 1983, describing it as “the nearest thing to a road-going racer ever produced.”

YPVS uses a small valve inside the exhaust port that can change the effective height of the port opening. A basic computer opens and closes the valve depending on engine speed. At low RPM, the valve partially closes the port, improving low-speed response. At high RPM, it opens fully to allow maximum flow.

This system works together with the expansion chamber in the escapamento RD. When choosing an aftermarket exhaust for a YPVS-equipped model, make sure the system is designed to work with the variable port. A pipe tuned purely for high-RPM performance will sacrifice the low-speed response that YPVS was designed to protect.

What Is an Escapamento RD?

The escapamento RD is the exhaust system designed for Yamaha’s RD series two-stroke motorcycles. “Escapamento” is Portuguese for exhaust, and RD stands for Race Developed. The system uses an expansion chamber to create pressure waves that push unburned fuel back into the engine, improving power, sound, and efficiency. It is one of the most important performance components on any two-stroke RD motorcycle.

Does the Escapamento RD Really Add Horsepower?

Yes. A properly installed and tuned aftermarket escapamento RD adds 15 to 25 percent more horsepower on most RD models, based on dyno tests published by multiple enthusiast sources. The gain comes from improved exhaust scavenging in the expansion chamber. Carburetor jetting must be adjusted after installation to achieve the full gain without running lean.

The Cultural Legacy of the Escapamento RD in Brazil

No other country has the same relationship with the escapamento RD that Brazil does. Yamaha entered Brazil in 1971, establishing its first office in São Paulo, according to Business Money. The RD 350 LC launched there in 1986 and became an icon of Brazilian motorcycling almost immediately.

Rodrigo Borges Torrealba, president of Moto-X Yamaha and a key figure in Yamaha’s Brazilian growth story, described the RD 350 as “every rider’s dream—a bike that combined power, speed, and a race-inspired design. It was unlike anything produced locally at the time.”

The RD 135 followed in 1993 and became the soundtrack of Brazilian street culture for a generation. The “boom-boom” sound of an RD 135 running a tuned escapamento became so recognizable that it defined neighborhoods, evenings, and memories. Original exhaust pipes from legendary brands like Fortuna and Dominator now sell for the equivalent of several hundred dollars on Mercado Livre, Brazil’s leading online marketplace, decades after those brands stopped production.

In India, a licensed version of the RD 350B called the Rajdoot 350 was assembled by the Escorts Group from 1983 to 1990. Around 7,000 were produced before the program ended. RD clubs across India still meet regularly, keeping the legacy alive through restoration projects and organized rides.

Is the Escapamento RD Street Legal in 2026?

This depends entirely on local regulations. In Brazil, noise enforcement for motorcycles has tightened over the years, and many performance escapamentos RD exceed the legal decibel limit for street use. Some riders fit a restrictive insert or baffle inside the silencer to bring noise down to compliant levels while keeping the performance pipe.

In Europe, emissions compliance is the bigger concern. The later RD 350R models made in Brazil for export to the UK and Europe between 1992 and 1995 came with restricted exhausts to meet regulations. These restrictions can be removed on private property or track use, but street riding with non-compliant exhausts risks fines.

The practical advice is simple: check your local motorcycle noise and emissions laws before installing an aftermarket escapamento RD. A performance pipe on a closed track or private road is almost universally legal. On public streets, the rules vary significantly by country and city.

Frequently Asked Questions About Escapamento RD

What does escapamento RD mean?

Escapamento is the Portuguese word for exhaust. RD stands for Race Developed, referring to Yamaha’s two-stroke motorcycle series. Together, escapamento RD describes the specialized exhaust system built for Yamaha RD motorcycles like the RD 125, RD 135, RD 350, and RD 400.

Which Yamaha RD models use the escapamento RD?

The term applies to all models in the Yamaha RD series, including the RD 125, RD 135, RD 250, RD 350, and RD 400. Each model requires a different pipe specification because engine displacement, power band, and mounting points differ across the range.

How much horsepower does an aftermarket escapamento RD add?

A properly tuned aftermarket expansion chamber typically adds 15 to 25 percent more horsepower compared to the stock exhaust. The exact gain depends on the specific pipe, the model, and how well the carburetor is adjusted after installation.

Do I need to rejet my carburetor after installing a new escapamento RD?

Yes, almost always. A performance escapamento changes how much air flows through the engine. Without adjusting the carburetor to supply more fuel, the engine runs lean. A lean mix reduces power, increases engine temperature, and can damage the cylinder over time.

Why does the escapamento RD sound so different from other exhausts?

Two-stroke engines produce a power pulse every crankshaft revolution, which is twice as often as a four-stroke. The expansion chamber amplifies and sharpens these rapid pulses into the distinctive high-pitched scream RD bikes are known for. The shape of the chamber directly affects the frequency and character of the sound.

What is the expansion chamber in the escapamento RD?

The expansion chamber is the wide, bulging middle section of the exhaust pipe. Its shape creates pressure waves that reflect back toward the cylinder and push unburned fuel back in just before the exhaust port closes. This process improves combustion efficiency and adds power without using extra fuel.

What material is best for an escapamento RD in 2026?

Stainless steel (inox) is the most popular choice in 2026 because it resists rust, dissipates heat efficiently, and lasts significantly longer than mild steel. Titanium offers the best weight reduction but costs considerably more. Mild steel gives strong resonance and classic sound but requires regular rust prevention.

Can I use an RD 350 escapamento on an RD 135?

No. The pipes are designed for specific engine displacements and RPM ranges. An RD 350 expansion chamber tuned for a 347cc twin-cylinder engine will not deliver the right pressure wave timing for the smaller RD 135 engine. Always match the escapamento to your exact model.

How often should I clean the inside of my escapamento RD?

For two-stroke engines, cleaning the expansion chamber every 5,000 to 7,000 km prevents carbon buildup from degrading performance. Riders who use fully synthetic two-stroke oil experience less buildup than those using conventional mineral oil.

Where can I buy a quality escapamento RD in 2026?

Local motorcycle specialists and two-stroke specialists are the best starting point for fitting advice. Online, Mercado Livre is the leading platform in Brazil and Latin America for both new and used RD exhausts. For global shipping, specialist suppliers and eBay carry OEM replicas, performance pipes, and custom systems. Always verify seller ratings and confirm fitment for your specific model before buying.

Is it worth upgrading the escapamento RD on an older bike?

Absolutely, if the engine is in good mechanical condition. A performance escapamento combined with proper carburetor tuning transforms the riding experience. If the engine has worn rings, a damaged cylinder, or a failing crankshaft seal, fix those first. The best exhaust in the world cannot compensate for a tired engine.

Conclusion

The escapamento RD is not a cosmetic upgrade. It is the breathing, sounding, performing heart of every Yamaha RD motorcycle. In May 2026, more than 50 years after the original RD hit the road, the passion for these bikes and their exhaust systems has not faded. If anything, a new generation of riders is discovering what their older brothers, fathers, and uncles already knew.

Choose the right type for how you ride. Tune the carburetor properly after installation. Maintain the pipe so carbon buildup never robs you of performance. Do those three things and the escapamento RD will give you exactly what it has always given the riders who understood it: more power, a sound you will never forget, and a connection to one of the most important chapters in motorcycle history.

The RD screams. Let it.

Learn more about the history and engineering of two-stroke engines on Wikipedia’s page on two-stroke engines.
